Are all fpe panels bad
On this site we talk about old houses and the good, the bad, and the ugly. There are plenty of joys and certainly some dangers of homeownership. We talked about dangers like lead paint, knob and tube wiring, and asbestos, but today I wanted to teach you about an electrical concern that may be lurking in your house, but is relatively easy to resolve.
If you own a house that was built or had the electrical system upgraded between the 1950s and 1990s you run the chance of having a Federal Pacific breaker panel as a part of your electrical system.
Federal Pacific breaker panels were extremely popular and installed in millions of homes across the country and sadly these panels pose a danger that should be dealt with promptly.
What’s Wrong with Federal Pacific Panels?
The style of Federal Pacific panels that used their Stab-Lok breakers were found, through independent testing in the 1980s, to fail to trip in the case of overload. This failure could result in overheating and fires.
The whole purpose of a circuit breaker is to trip or “break” the flow of electricity when a circuit becomes overloaded thus preventing the risk of fire or serious electrocution.
In a 1980s court case it was revealed that not only were the breakers failing to pass the Underwriter’s Laboratories (UL) guidelines but that Federal Pacific committed fraud and a cover-up regarding their testing. They labeled the breakers as meeting the UL standards when they clearly did not.
It was discovered that many of these Stab-Lok breakers did not disconnect when overloaded. In the 1980s the U.S. Consumer Product Safety Commission (CPSC) investigated the performance of the circuit breakers. CPSC performed its own laboratory tests on samples of
FPE Stab-Lok single-pole and double-pole breakers. For these samples, they found that 85% of the double-pole breakers and 39% of the single-pole breakers failed one or more of the UL test criteria.
In some cases the breakers failed to trip at ANY amount of current which poses a critical danger to occupants!
How To Tell If My Breaker Panel is Dangerous
Not every Federal Pacific panel is dangerous. The breakers with the problems seem to be limited to the Stab-Lok brand so identifying that style is most important. Any breaker box installed before the 1990s may be one of these Federal Pacific panels so that means any house built before the 1990s is potentially at risk.

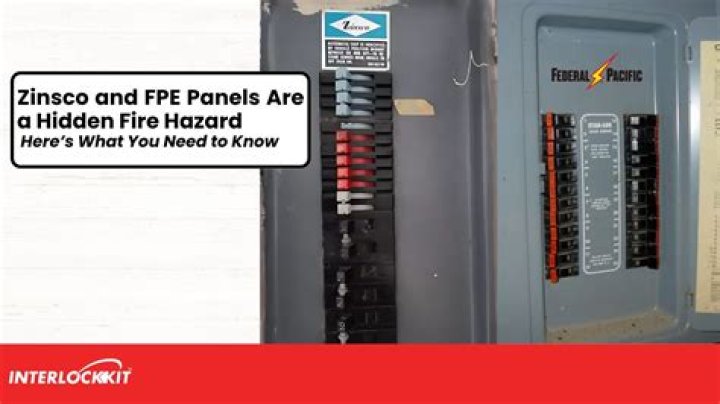

The easiest way to tell if you have a Federal Pacific panel is to check out the cover on your breaker box. You’ll see the name Federal Pacific or FPE printed or embossed onto the panel cover. If there are no markings on the cover open it up and check the inside of the breaker box.
The box itself is not the danger, but rather FPE’s Stab-Lok circuit breakers. These breakers typically have a red stripe on the end of the switch where the circuit amp rating is printed in black.
You’ll also find the Stab-Lok logo inside the panel in many cases. If you’re still unsure it’s never a bad idea to have a local electrician come take a look.
Do I Have to Replace My Federal Pacific Panel?
The short answer is yes. These breakers have been responsible for too many fires and pose a real danger to you and your house. They should be prioritized for replacement if you find one of these anywhere in your house.
You’ll have trouble finding homeowner’s insurance without replacing your Federal Pacific breaker panel as well, so replacing it is not only good safety sense but good financial sense.
Don’t attempt to repair or modify the panel to save money. Replacement is the best option.
Are Federal Pacific and Federal Pioneer the Same?
Federal Pioneer is the Canadian brand name of the same Federal Pacific panels sold in the US. These panels are subject to the same overloading failures as their Federal Pacific cousins since they are the same design simply with a different moniker.
There is a currently a recall in Canada for several Federal Pioneer circuit breakers you may want to explore if you happen to own one of these.
Stay Safe
The bottom line is that Federal Pacific breaker panels should almost always be replaced. The risk from having circuit breakers in your home that don’t do their important job of preventing fire and overload is too great.
It’s possible that you may have a FPE panel that has performed admirably over the decades, but in my opinion having a product from a company that knowingly cheated on their UL testing doesn’t inspire enough confidence to help me sleep well at night.
Simple explanation of difficult things
- Home »
- Most popular »
- Are all FPE breakers bad? »
Are all FPE breakers bad?
No, not all FPE panels are bad. Some were never installed and as long as those panels remain undisturbed they are perfectly fine!
Are FPE panels illegal?
Federal Pacific Electric panels were produced from the mid-1950s well into the 1980s. Experts say that FPE panels produced during that time frame would not conform to today’s updated safety codes and would no longer be allowed to be sold to the general public.
Should I replace my FPE panel?
Should I Replace My Electrical Panels? Federal Pacific panels were once very popular electrical panels. (Note: These panels are also known as the circuit breaker, breaker box, breaker panel, and service panel.) It’s highly recommended that you replace it with an updated and safer electrical panel.
Who makes Federal Pacific breakers?
Reliance Electric Co., FPE’s parent company, provided additional information that leads one to doubt how safe these panels are.
Why should I replace a federal Pacific electrical panel?
These breaker panels have high failure rates linked to thousands of house fires; thus, they are considered defective and unsafe among industry professionals. The common stance among home inspectors and home inspection certification organizations, like NACHI and ASHI, is that Federal Pacific Electric breaker panels need to be replaced.
Are federal Pacific electric circuit breaker panels dangerous?
Yes, Federal Pacific Electric Stab-Lok breaker panels are dangerous and considered to be a latent fire risk. Federal Pacific breaker panels are considered dangerous as breakers fail to trip over 50% of the time when an electrical surge is detected.
What is a federal Pacific main breaker?
A Federal Pacific Electrical breaker box works like other home electrical panels. The break box takes the main electrical supply line and distributes the power to individual circuit breakers. Ultimately, this supplies electricity throughout your home. Breakers prevent electrical overload.
What is a federal Pacific electric circuit breaker?
Federal Pacific Electrical panels are a type of electrical panel made by the Federal Pacific Electrical Company. Other names for a Federal Pacific Electrical panel include Federal Pacific Electrical breaker box or FPE Stab-Lok breaker. Between the 1950s and 1980s, home installed millions of these panels.
Many homeowners are not aware that there are various types of electrical panel boxes or circuit breaker boxes, as they are sometimes called. All of the electricity in the home is in this box with the main panel, circuit breakers, and bus bars. Often, this is located in the garage or the basement or a wall inside the home if there is no garage. Opening one up, all electrical panel boxes look similar; a switch to turn the source back on if the circuit breaker shorts out, and labels for all the various parts of the house that the box controls. However, did you know that many insurance companies will not insure Federal Pacific Electric Panels (also known as FPE panels? ) Let’s take a look at the reasons.
Example of Federal Pacific Electrical Panel (FPE)
1. FPE Panels Cause Fires and Injury/Death
In the 1950s – 1980s, FPE panels were installed in homes and commercial properties across the United States. Today, around 28 million of these panels are still in homes as many consumers are not aware of the dangers. Unfortunately, the FPE panels malfunction and stay on or jam and can possibly start a fire. In addition, FPE panels also can continue to send electricity through them when the breakers are in the off position, thus resulting in electrocutions. Therefore, homes with an FPE panel are difficult to obtain home insurance.
2. FPE Cheated for an Endorsement
In the late 1970s and early 1980s, several companies tested the FPE Stab-Lok circuit breakers and found that testing failed. The Federal Pacific Electric Company cheated on the testing and used a mechanical switch to turn off the breaker so they would earn an Underwriters Laboratories (UL) endorsement. As a result, a class-action lawsuit was filed in New Jersey years later and UL pulled their endorsement. Insurance companies will not insure homes with FPE’s as their systems can fail.
3. Too Dangerous to Insure; Pay the Price Now or Later
How do you know if your home has an FPE?
- Look to see if there is a label of “FPE”, “Federal Pacific Electric Company” or “Stab-Lok.”
- Do you see red-tips on the Federal Pacific breakers?
If the answer is yes, then you have the FPE panel and need to replace it. The cost for this is about $1500 and the home inspector will list this finding on the report as well.
If you would like more information about FPE’s, here is a great resource.
Do you have an FPE in your home or questions about FPE’s? Leave us a reply below!
Federal Pacific Electric Panels
Federal Pacific Electric Company (FPE) was one of the most common manufacturers of circuit breaker panels in North America from the 1950s to the 1980s. Millions of their panels were installed in homes across the country. Yet, as the years passed, electricians and home inspectors often found Federal Pacific Electric panels failed to provide proper protection to homeowners and their families. Experts now say that FPE panels can appear to work fine for years, but after one over-current or short circuit, they can overheat and become fire hazards.
In a class action lawsuit, a New Jersey State Court ruled that the Federal Pacific Electric (FPE) Company “violated the Consumer Fraud Act because FPE knowingly and purposefully distributed circuit breakers which were not tested to meet UL standards…” (To see the Class Action Settlement Notice issued for New Jersey Residents, click here.) An expert who investigated the potential hazards of Federal Pacific Electric panels stated under UL 489 test conditions, that FPE panels fail to trip at a much higher rate than standard panels.
When a breaker fails to trip, an extreme amount of power from the outside electrical supply surges into a home’s panel and circuits. Once that happens, it cannot be stopped or shut off manually. Electricity will burn until it runs out of fuel or the wires melt. The panel could overheat and catch fire, causing serious harm to a home and its occupants. Many Federal Pacific Electric panels and breakers can operate properly for years. But if and when they do malfunction, a disaster could occur. Learn More here and also here.
Damage Caused by Federal Pacific Electric Panels
A Federal Pacific Electric (FPE) circuit breaker panel can appear to be working properly for years. BUT experts warn that if a Federal Pacific Electric panel experiences an overcurrent or short circuit, it may not keep the electrical circuits from overheating and could possibly pose a fire hazard.
According to a report, some Federal Pacific Electric panels failed to operate properly nearly 60% of the time in the event of a power surge. To the right is one example of a Federal Pacific Electric panel. The homeowner reportedly heard a loud pop, followed by a sizzling noise and a burning smell. She called an electrician; this is what he found.
The homeowner had no way of knowing that too many electrical devices were plugged into one room. The devices required more electricity than the circuit could provide. “The wiring got hot enough to fry an egg,” the electrician reported. Normally, the circuit breakers should trip to cut off the electricity and prevent a fire. The Federal Pacific Electric breakers did not operate properly, resulting in two circuit breakers and a bus bar being burned.
Why Do Federal Pacific Electric Panel Malfunction?
The circuit breaker panel is one of the most important parts of a home’s electrical system. It constantly distributes and receives electricity. The panel protects homes from power surges and other possible hazards. With regular maintenance by a licensed electrician, experts say that today’s electrical panels can function properly and protect homes for 30 years or more.
If you suspect that you may have a Federal Pacific Electric, Zinsco, or an outdated circuit breaker panel in your home, or in any event, you have not had your panel inspected recently, you owe it to yourself and your family to contact a licensed electrical contractor in your area for an inspection.
Experts report that Federal Pacific Electric (FPE) circuit breaker panels may have three major faults that could pose a danger:
1.) Federal Pacific Electric panels may not meet today’s updated safety codes.
Federal Pacific Electric panels were produced from the mid-1950s well into the 1980s. Experts say that FPE panels produced during that time frame would not conform to today’s updated safety codes and would no longer be allowed to be sold to the general public. Safety standards that were once acceptable years ago are no longer considered safe. Some of the examples cited by experts as to why FPE panels would not pass today’s updated safety codes are:
- Wires may be crowded inside the panel box.
- Bus bars may be spring-mounted.
- Breakers may be still active when in the down position.
- Split-bus breakers may no longer meet updated safety codes.
2.) Federal Pacific Electric panels may have significant design flaws.
Experts report that the identified design flaws in FPE panels are not shared with other panels of similar age. Specifically, examples of design flaws in Federal Pacific Electric panels include:
- Breakers may unexpectedly trip when the dead-front cover is removed.
- Breakers may have loose connections to the bus bars.
- Breakers are often jammed within their sockets, which can cause overcrowding within the panel.
- Breakers can easily split when placed into sockets.
3.) Federal Pacific Electric panels may have manufacturing defects.
Using UL 289 test conditions, the Consumer Product Safety Commission (CPSC) found that Federal Pacific Electric panels may be unfit for homes. The materials used to construct the breakers may be weak. As a result, the breakers may not trip, and the panel could be susceptible to catching on fire.
What Should a Homeowner Do?
The circuit breaker panel is one of the most important parts of a home’s electrical system. It constantly distributes and receives electricity. The panel protects homes from power surges and other possible hazards. With regular maintenance by a licensed electrician, experts say that today’s electrical panels can function properly and protect homes for 30 years or more.
If you suspect that you may have a Federal Pacific Electric, Zinsco, or an outdated circuit breaker panel in your home, or in any event, you have not had your panel inspected recently, you owe it to yourself and your family to contact a licensed electrical contractor in your area for an inspection.
